At ibmv our design department specializes in both 3D solid modelling and in the production of 2D construction drawings for the marine industry. Projects are carried out in accordance with the latest shipbuilding and machine building standards.


Our professional services include:

  • Specific project contracts

  • Work to classification society standards

  • Shipyard construction drawings

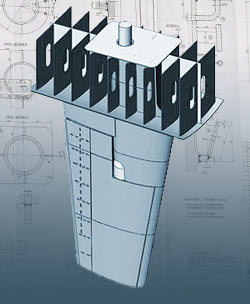

Complete solid model of a HERUS® rudder
